FT-101 / FT-277 ACC-Connector / ACC-Plug

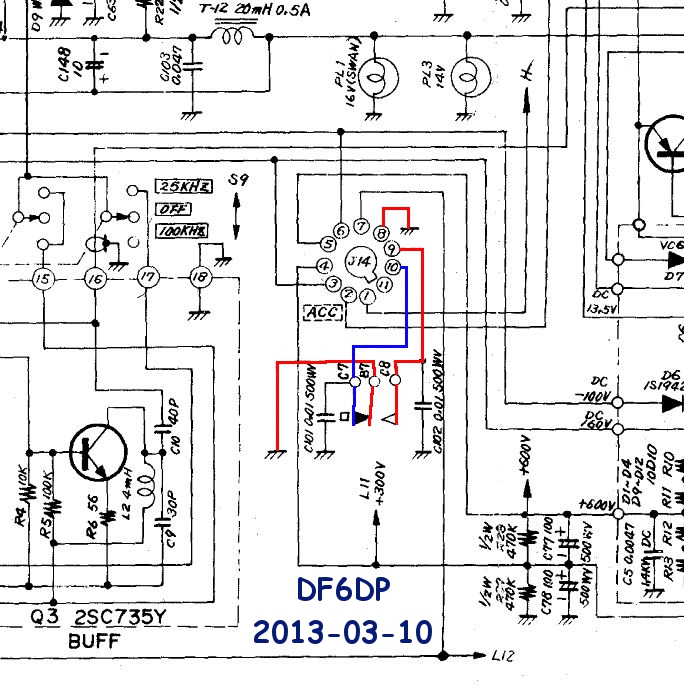

If you want to add an external device to your FT-101 or FT-277 eg. PAs or transverters, you can see below the wiring of the internal relay.

Try at your own risk! I will not be responsible if you, anyone, or anything gets hurt or damaged!
